What To Send Us



Immobiliser security data is located in various places on each make and model of motorcycle. Please click on one of the motorcycle manufacturers icons below. This will give you coded key information and advises you on the necessary item to send us. We will then be able to programme two new coded keys for your motorcycle.







If your motorcycle manufacturer is not listed, please contact us



Yamaha

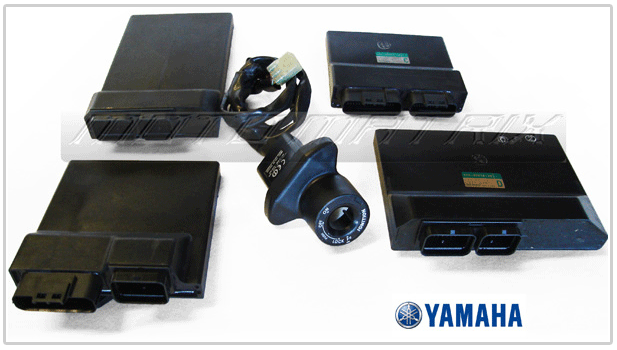

To make and programme a Red Master key and a Black standard key for Yamaha motorcycle we need the Transponder Aerial and ECU sending to us. The immobiliser system is in the transponder aerial and also synchronised with the ECU, Both parts need to be programmed.





Yamaha Motorcycles that use this immobiliser system are;



  •    FZ6 FZR FAZER 600 ( 4S8 , 5VX )
  •   YZF R6 ( 5SL , 2C0 , 13S )
  •   YZF R1 ( 5VY , 4C8 , 14B , 1KB )
  •   XVS 1300
  •   FZ1 1000 ( 2D1 )
  •   TDM 900 ( 2B0 )
  •   XJR 1300 ( 5WA )
  •   FJR 1300 ( 5VW )
  •   XT 660 ( 5VK )
  •   X-MAX 125 , 250
  •   T-MAX



HONDA

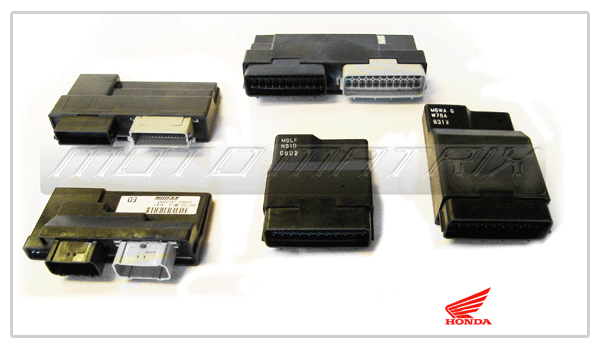

Honda Motorcycles use the HISS immobiliser key system. For Motomatrix to programme two new coded keys for these bikes, we will need you to send us the motorcycle ECU.
Part numbers on these items will start with 38770- XXX-XXX





 Honda Motorcycles that use this immobiliser system are;



  CB1300 ( 38770-MEJ-671 , 38770-MEJ-672 )
  CB400 ( MBWA )
  CB600 HORNET ( 38770-MFG-D02 )
  CBF1000 ( 38770-MFA-D03 )
  CBR1000RR ( 38770-MEL-643 , 38770-MEL-D01 , 38770-MEL-D21 , 38770-MFL- 741 , 38770-MFL-644 , 38770-MPG-D01 )
  CBR1100 ( 38770-MAT-E01 , 38770-MAT-E02 , 38770-MAT-D51 , 38770-MAT-D52 )
  CBR400RR ( 38770-MFM-702 )
  Cbr600 ( MBWA )
  CBR600RR (38770-MBW-D21 , 38770-MBW-D41 , 38770-MEE-622 , 38770-MEE-643 , 38770-MEE-644 , 38770-MEE-613 , 38770-MEE-D01 , 38770- MFJ-D01 , 38770-MFJ-D04 , 38770-MFJ-D41 , 38770-MFJ-D42 )
  CBR929 ( 38770-MCJ-641 )
  CBR954 ( 38770-MCJ-D01 )
  NT700 (38770-MEW-921 )
  SH300 ( 38770-KTW-901 )
  SILVERWING ( 38770-MFT-642 , 38770-MCT-D62 , 38770-MCT-D01 )
  ST1300 (38770-MCS-G02 )
  VFR1200 (38770-MGE-644 )
  VFR800 ( 38770-MCW-H01, 38770-MCW-D02, 38770-MCW-D03 , )
  VT1300 ( 38770-MFR-642 )
  XL1000 VARADERO ( 38770-MBT-G51 )





BMW



The BMW immobiliser system is integrated into the ECU system. To programme two new key chips to these bikes we need the ECU sending to us. The ECU,s can be slightly different in size and shape, but as a general rule look like the image below.





BMW Motorcycles that use this immobiliser system are;



  F800st S1000RR
  K1200 R1200 GS Range



SUZUKI

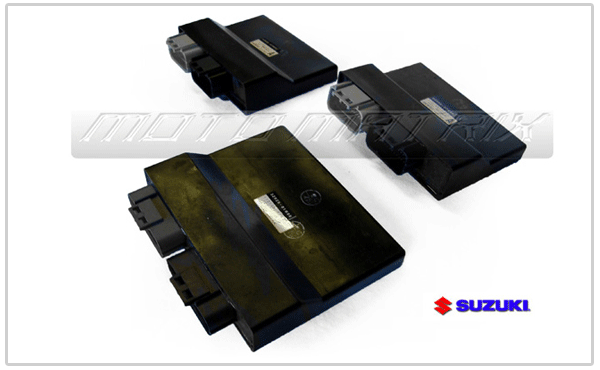

The Suzuki uses the SAIS immobiliser system. For Motomatrix to make and programme 2 new keys for this motorcycle, we need the ECU sending to us. Suzuki has a part number label on the ECU that will start with the numbers 32920-xxxxx.





  Suzuki Motorcycles that use this immobiliser system are;



  BURGMAN ( 32920-15GA0 ) ( 32920-14GA0 )
  GSR600 ( 32920-44G00 )
  GSX1400 ( MITSUBUSHI 24F90 MGT 106 F8T96972 )
  GSXR1000 ( 32920-21H00 ) ( 32920-21H50) ( 32920-41G00 ) ( 32920-41G50 ) ( 32920-47H00 )
  GSXR1300 B-KING ( 32920-23H00 )
  GSXR1300 HAYABUSA ( 32920-15H00 )
  GSXR600 ( 32920-01H00 ) ( 32920-37H00 )
  GSXR750 (32920-02H00 ) ( 32920-38H00 )



KAWASAKI

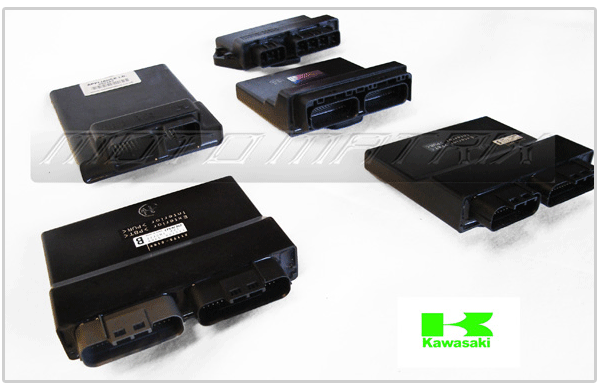

Kawasakiuses the KISS immobiliser system. To make and programme a Red master Key and a Black Standard Key we need the ECU only to be sent to us. Kawasaki ECU, s have a label with the part numbers 21175- xxxx.





Kawasaki Motorcycles that use this immobiliser system are;



  Z1000 ( 21175-0097 ) ( 21175-0098 )
   Z750 ( 21175-0052 ) ( 21175-0053 )
   ZX10R ( 21175-079 ) ( 21175-0094 )
   ZX1200 ( 21175-0037 )
   ZX6 600 ( 21175-0109 )
   ZX6R 636 ( 21175-0046 ) ( 21175-0220 )
   ZZR1400 ( 21175-0091 )



APRILIA

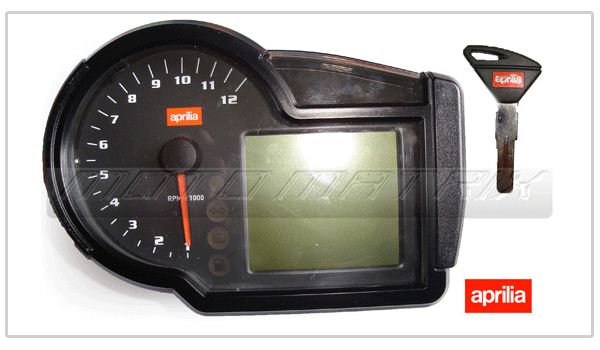

Aprilia has the immobiliser system programmed into the Speedo/ instruments or immo box. We need the speedo / instruments sent to us to make two new keys.









Aprilia Motorcycles that use this immobiliser system are;





  MANA RSV4
  PEGASO RSVR
  RSV MILLE (immo box) SHIVER
  TUONO RSV MILLE





MV AGUSTA

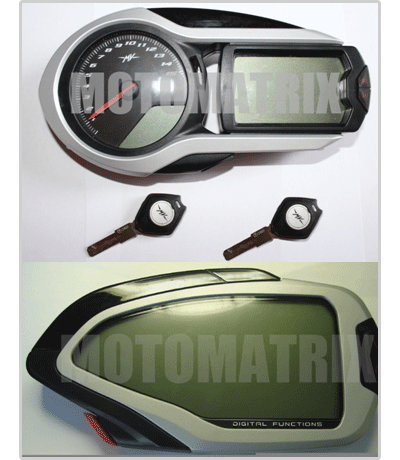

MV Agusta has introduced immobiliser systems on their new models. Motomatrix can code new keys to these motorcycles. We need you to send us the Speedo / instruments from your bike.





  MV Agusta Motorcycles that use this immobiliser system are;



  Brutal
  F3
  675 929 1090



DUCATI

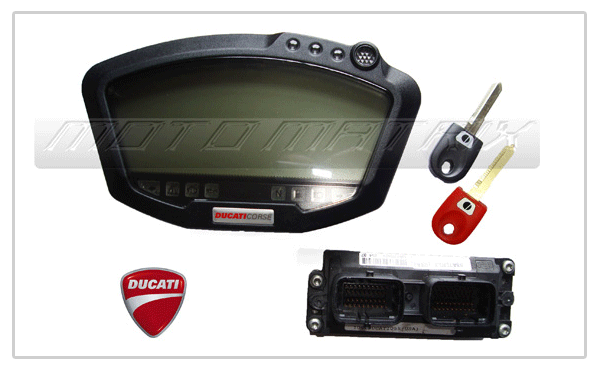

Ducati has the immobiliser system programmed into the Speedo / Instruments. They can be manufactured by DIGITEC or MARELLI. We need the speedo / instruments sent to us to make a Red master Key and Black Standard Key. Ducati can also use 2 black keys and a pin code. We supply the immobiliser pin code for each immobiliser system of this type programmed.





  Ducati Motorcycles that use this immobiliser system are;



  696
  749
  848
  1098
  1099
  1000ss
  1199
  998 HYPERMOTARD 796 1100
  MONSTER 620I 750 1100 S4 916
  Monster S2R s4r
  Multistrada
  Classic
  Diavel 1000 s1000
  696 749 749s 796 848 1098 1198 999 999s st3
  supersport sport touring
  MTS1200 1200
  Panigale

Ducati Hypermotard 1100 976 Streetfighter

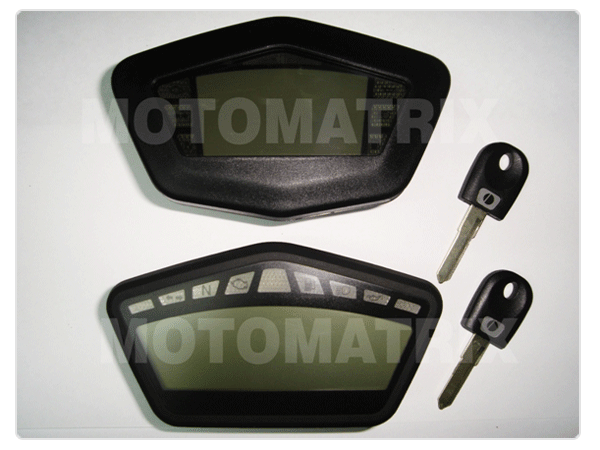

 The Ducati Hypermotard 1100 796 Streetfighter Immobiliser security system is located in the speedo / Instruments / dash . In order to programme new coded keys to this model the item in the image above needs to be sent to Motomatrix .



Vespa / Gilera / Piaggio

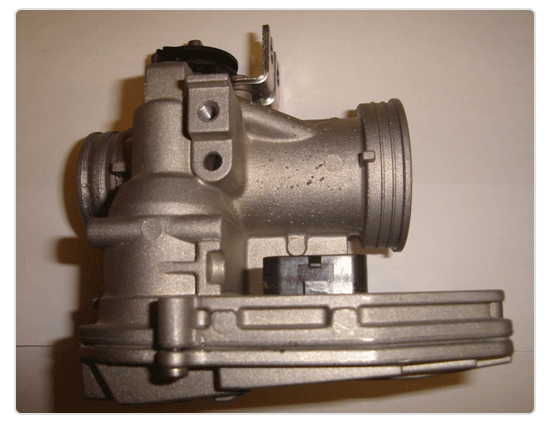

Immobiliser Throttle bodies





These scooters have the immobiliser system stored in the throttle body CDI unit . The body will have to be sent to us to programme new keys to this system. The cost for scooter key programming is reduced, please ask for details.
